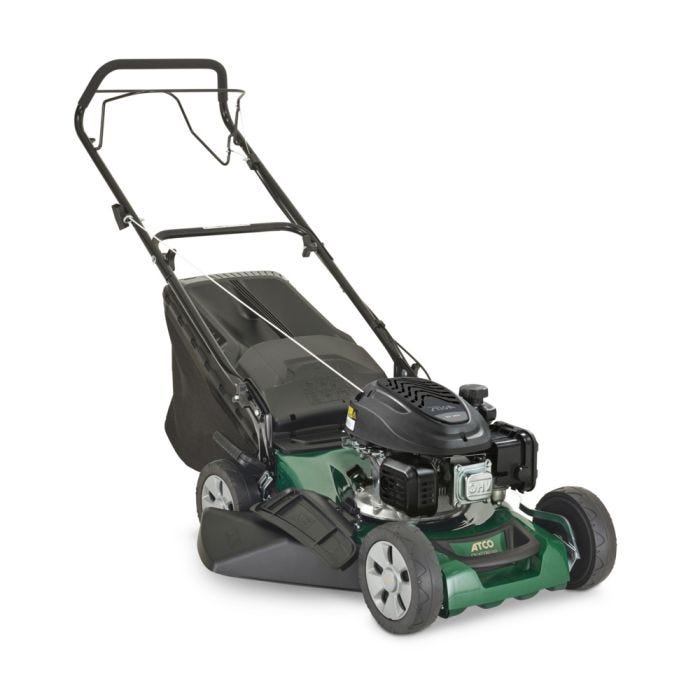

QUATTRO 16S 4in1

Petrol lawn mower

The Quattro 16S entry-level 4-wheel, self-propelled lawnmower with a cutting width of 41cm is ideal for working around compact lawns with uneven terrain or sloping areas. Soft-grip handlebars are designed for comfort and have two height settings to accommodate your ideal mowing position.

Powered by Stiga 139cc Autochoke engine
Self-propelled
41cm (16") cutting width
4-in-1 cutting-system - collect, mulch, side-discharge and rear-discharge.
60 L grass collector with indicator to show when full
Handy quick connect washing link

Free Shipping
Promotions

Special Price £329.00 Regular Price £379.00 Your Saving: -£50.00

Vat Included

Find a store

Product details and specs

The STIGA ST 140 engine with an automatic choke ensures quick and easy starting, while its OHV engine design provides consistent fuel intake for a smoother mow and a more long-lasting engine, along with the added benefits of fuel-saving and low emissions.
Boasting four cutting modes- collecting, mulching, rear and side-discharge - the versatile Quattro 16S is capable of handling short grass, long grass, and everything in between.
A single lever enables the cutting height to be adjusted through 6 positions ranging from 22mm to 65mm. The useful and capacious 60-litre grass-box is made from fully-collapsible textile fabric for easy storage and has a grass-full indicator, so you can focus on continuous mowing. A washing link allows you to clean corrosive debris quickly from the undercarriage, protecting the mower and extending its lifespan.
The Quattro 16S 4-in-1 is a fabulously popular walk-behind lawn mower at a superbly economical price.

This model is ideal for areas up to 900m2. A 5-year manufacturer's warranty is included with this machine (T&C's apply).

For advice on the Lawnmower best suited to your requirements please call our Technical Helpline on 0800 669 6327 or contact your local ATCO Dealer who will be happy to advise you.

What's in the box

QUATTRO 16S 4in1

Petrol lawn mower

Grass bag

Technical specs

General info

EAN/UPC

8008984848900

SKU

2L0432847/AT1

Power

2.2 kW

Power source

Petrol

Engine Brand

STIGA

Engine model

ST 140 OHV Autochoke Powered by STIGA

Displacement

139 cm³

Engine rotation speed

2900 rpm

RPM control

Fixed rpm

Starter

Recoil

Fuel tank capacity

0.75 l

Engine Oil tank capacity

0.5 l

Suggested working area

300 ㎡

Cutting system

4 in 1 cutting system

Yes

Cutting width

41 cm

Deck material

Steel

Cutting height adjustment

Centralized

Cutting height positions

6 positions

Cutting height range

22 - 65 mm

Drive system

Driving

Self-propelled

Traction

Rear-wheel drive

Speed forward

3.7 Km/h

Equipment

Collector capacity

60 l

Handlebar type

Ergonomic + soft grip

Wheels

200/200mm grooved wheels on ball bearings with soft tread

Front handle

Yes

Adjustable handlebar

Yes

Foldable handlebar

Yes

Washing link

Yes

Collector type

Hybrid with warn

Vibration and noise data

Guaranteed sound power level (LwA) - dB(A)

Measured sound power level dB(A)

Measured sound pressure level at operator ear dB(A)

Vibration level hand (m/s2)

Overall dimensions

Pack weight

29.8 kg

Product length

1500 mm

Product width

660 mm

Product height

1110 mm

Weight

27 kg

Support

Faqs

Should the petrol lawn mower be protected from rain?

All ATCO lawn mowers are IPX4 certified, meaning that they are not damaged by rain. However, it is recommended to keep the lawn mower in a garage or store it indoors. Full information can be found in the instruction manual.

Is this petrol lawnmower already assembled in the box?

The petrol lawn mower is almost fully assembled when you open the box. The main parts have been put together and the remaining elements are easy to assemble. Follow the directions in the instruction manual to ensure the petrol lawnmower is assembled correctly.

How should this petrol lawn mower be cleaned after use?

We recommend cleaning the lawn mower in the normal way after each use. Before washing the lawn mower, we suggest that any residual grass or top soil is removed using the special scraper, which can be purchased separately. Next, the inside of the chassis can be washed with water.
Follow the steps described in the user manual.

Which fuel and engine oil are recommended for this petrol mower?

You should use petrol as fuel. In terms of engine oil, we recommend using the specific oil, which can be purchased separately. This will guarantee the best engine performance and optimal lubrication.

What happens to this petrol mower if there are small objects in the garden?

When the lawn mower is in use, you should look out for any stones, pine cones or other small objects which may be on the lawn. These objects could damage the blade and hit nearby objects or people.

How should the oil level be measured on this petrol lawn mower?

To correctly measure the oil level, you need to make sure the petrol lawnmower is on a flat surface, unscrew the cap which has a built-in dipstick for measuring, clean off any oil on the dipstick and reinsert it without screwing it in. Take the dipstick back out and check the level, which must lie between the MIN and MAX values. Top up, if required, and screw the cap back on. Full details can be found in the engine manual.
